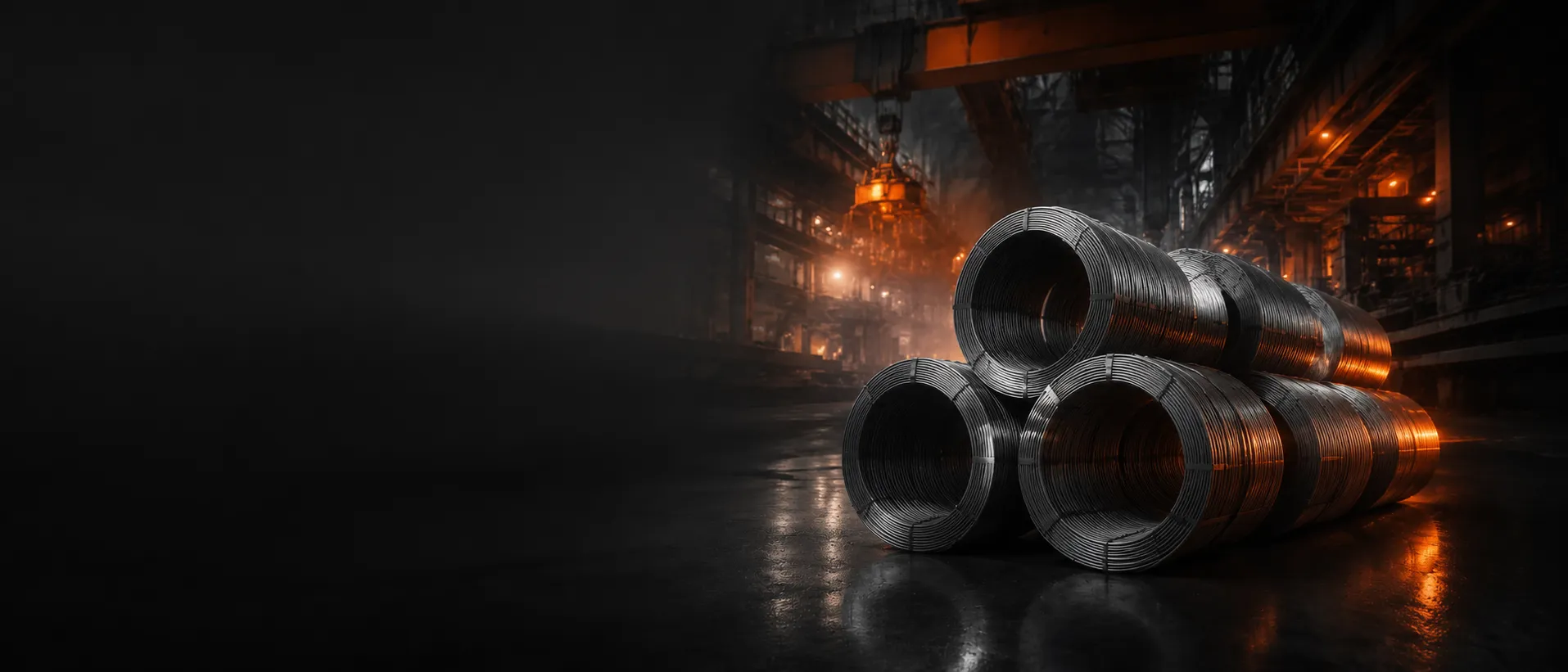

Wire Rod is a semi-finished steel product produced by hot rolling. It is widely used as raw material for drawing into steel wire, and in the production of welded wire mesh, nails, screws, bolts, springs, and various construction products. Our Wire Rod is manufactured with consistent quality, excellent ductility, and uniform surface finish, making it ideal for drawing and fabrication processes.
Key Features
• Available in different diameters and steel grades
• High ductility and weldability
• Suitable for cold drawing and forming
• Used in construction, manufacturing, and industrial applications
• Supplied in coils
Steel Wire Rode Specifications
| Product | Size (mm) | Analysis |
|---|---|---|
| Wire Rod | 5.5 | 5SP |
| Wire Rod | 5.5 | 3SP |
| Wire Rod | 5.5 | SAE1006 |
| Wire Rod | 5.5 | SAE1008 |
| Wire Rod | 5.5 | SAE1012 |
| Wire Rod | 5.5 | Rst34 |
| Wire Rod | 5.5 | C72D2 |
| Wire Rod | 5.5 | SG2 |
| Wire Rod | 5.5 | SWRY11 |
| Wire Rod | 6.5 | 5SP |
| Wire Rod | 6.5 | 3SP |
| Wire Rod | 6.5 | SAE1006 |
| Wire Rod | 6.5 | SAE1008 |
| Wire Rod | 6.5 | SAE1012 |
| Wire Rod | 6.5 | Rst34 |
| Wire Rod | 6.5 | C72D2 |
| Wire Rod | 6.5 | SG2 |
| Wire Rod | 6.5 | SWRY11 |
| Wire Rod | 7.2 | 3SP |
| Wire Rod | 7.2 | SAE1006 |
| Wire Rod | 7.2 | SAE1008 |
| Wire Rod | 7.2 | SAE1012 |
| Wire Rod | 8 | 3SP |
| Wire Rod | 8 | SAE1006 |
| Wire Rod | 8 | SAE1008 |
| Wire Rod | 8 | SAE1012 |
| Wire Rod | 8 | A2 |
| Wire Rod | 8 | A3 |
| Wire Rod | 9 | 3SP |
| Wire Rod | 9 | SAE1006 |
| Wire Rod | 9 | SAE1008 |
| Wire Rod | 9 | SAE1012 |
| Wire Rod | 10 | 3SP |
| Wire Rod | 10 | SAE1006 |
| Wire Rod | 10 | SAE1008 |
| Wire Rod | 10 | SAE1012 |
| Wire Rod | 11 | 3SP |
| Wire Rod | 11 | SAE1006 |
| Wire Rod | 11 | SAE1008 |
| Wire Rod | 11 | SAE1012 |
| Wire Rod | 12 | 3SP |
| Wire Rod | 12 | A2 |
| Wire Rod | 12 | A3 |
The following tables contain chemical analysis and physical properties of several samples of our exported rebar coils based on internationally recognized standards, which indicate the quality, precise alloy composition, and mechanical performance of the products.
| Category | Standard | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | Cu | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Medium Carbon | ASTM A510 | SAE 1012 | 0.18–0.23 | 0.1–0.3 | 0.7–1.0 | ≤0.02 | ≤0.02 | ≤0.05 | ≤0.05 | ≤0.5 | ≤0.1 | ≤0.01 |
| Medium Carbon | GOST 380 | ST 3sp | 0.14–0.22 | 0.15–0.3 | 0.4–0.7 | ≤0.02 | ≤0.02 | ≤0.1 | ≤0.01 | ≤0.1 | ≤0.1 | ≤0.005 |
| Low Carbon | ASTM A510 | SAE1006 | 0.04–0.08 | 0.03–0.15 | 0.25–0.4 | ≤0.02 | ≤0.02 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.01 |
| Low Carbon | ASTM A510 | SAE1008 | 0.05–0.10 | 0.03–0.15 | 0.3–0.5 | ≤0.02 | ≤0.02 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.01 |
| Low Carbon | ASTM A510 | SAE1018 | 0.15–0.20 | 0.03–0.15 | 0.6–0.9 | ≤0.02 | 0.02 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.01 |
| Low Carbon | DIN | RSt34 | 0.04–0.11 | 0.03–0.15 | 0.25–0.5 | ≤0.02 | ≤0.02 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.01 |
| Category | Standard | Grade | Tensile Test Standard | Tensile Strength (MPa) | Yield Strength (MPa) | Reduction of Area RA (%) | Elongation (%) |
|---|---|---|---|---|---|---|---|
| Medium Carbon | ASTM A510 | SAE 1012 | ISO 6892-1 | 460–520 | 300–350 | 70–75 | 35–45 |
| Medium Carbon | GOST 380 | ST 3sp | ISO 6892-1 | 430–510 | 300–320 | 65–70 | 40–45 |
| Low Carbon | ASTM A510 | SAE1006 | ISO 6892-1 | 330–380 | 210–280 | 75–80 | 45–50 |
| Low Carbon | ASTM A510 | SAE1008 | ISO 6892-1 | 330–390 | 210–280 | 75–80 | 45–50 |
| Low Carbon | ASTM A510 | SAE1018 | ISO 6892-1 | 420–480 | 290–320 | 65–70 | 40–45 |
| Low Carbon | DIN | RSt34 | ISO 6892-1 | 330–390 | 210–280 | 75–80 | 45–50 |
FDSteels; your business partner for supplying premiumquality of Steel Wire Rode from Iran.
As a reliable business partner for our customers, we are ready to supply and export all kinds of Steel Wire Rode with premium quality, competitive prices and acceptable services. Now, contact us to get the best consult and offers.
